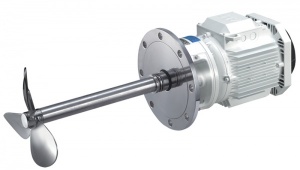

Bottom Side Entry Agitator LR/LM

The bottom side entry agitators are used in process and storage tanks in the applications of the food-processing industry.

The main application is agitation of low viscosity products like wine, oil, milk, beer, alcohol, etc. in large volume tanks.

Operating principle

The LR agitators are driven by geared motors and the LM agitators are provided with direct motors.
These agitators are installed in a slanted position.

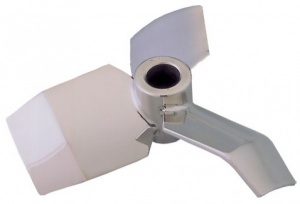

The rotation of the propeller creates a flow that impells the product to the bottom of the tank and then raises up to the surface  along the wall opposite to the agitator. The effect is promoted if the bottom is curved. The agitator is installed decentralized to enhance the circular flow. Thus a complete homogenization of the product is achieved.


Other Agitators

The range of the BCI agitators presents vertical direct motor-driven agitators. Read more...
The NHS agitators are vertical agitators with worm gearmotor. Read more...
