Agitators
Vertical Agitator BCI

The range of the BCI agitators presents vertical direct motor-driven agitators.

These agitators are used in the processes of mixing, dissolution, dispersion and maintenance whenever powerful and high-speed agitation is required in the food processing, cosmetics, pharmaceutical or chemical industries.
The agitators are normally fitted to small volume tanks of up to 1.500 liters for work with low-viscosity products.

Operating principle

The agitators are normally installed inside the tank either centrally with current deflectors, or offset, so that the offsetting itself prevents the rotation of the stirred product.
The rotation of the propeller makes the fluid flow to the bottom and then up to the surface of the product along the walls of the tank. The effect is promoted if the bottom of the tank is curved.

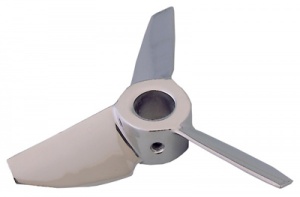

The Lineflux vigorously agitates the content of the tank promoting the mixing of the product  while the saw tooth propeller promotes its dispersion.






Other Agitators

The bottom side entry agitators are used in process and storage tanks in the applications of the food-processing industry. Read more...
The NHS agitators are vertical agitators with worm gearmotor. Read more...
